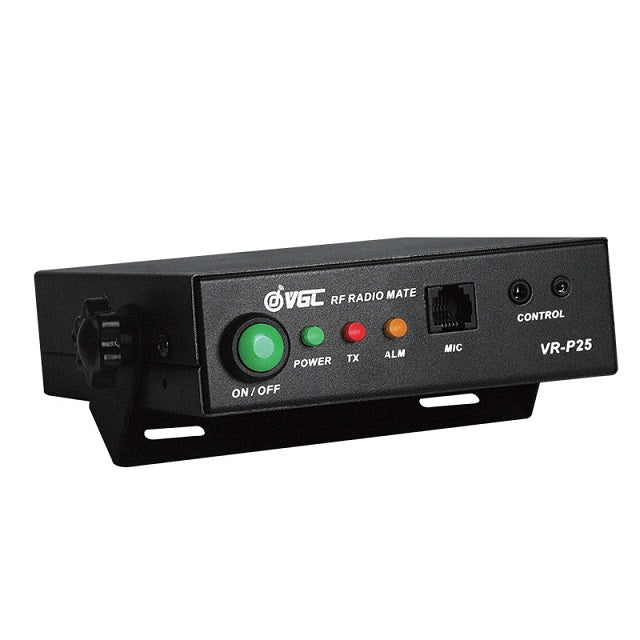

Vero VR-P25D UHF 30 watt walkie-talkie amplifier
Vero VR-P25D UHF 30 watt walkie-talkie amplifier Analog and Digital
Turn your walkie-talkie into a powerful mobile phone with the Vero VR P250 UHF 30 watt amplifier!
At CBShop, we already sell so-calledexport walkie-talkies with 5 watts or more.
You have those as Dualbander (VHF 2-meter and UHF 70 cm) and singlebander, vhf or uhf.
This Vero amplifier you have only as UHF or VHF. So you have to pay close attention to that.
The Vero P250 UHF amplifies a 5 watt walkie-talkie to a whopping 30 watts!
UHF 400 - 470 M cm MHz covers the 70 cm amateur band as well as public LPD and PMR frequencies.
It is important that your walkie-talkie has a separate antenna connection!

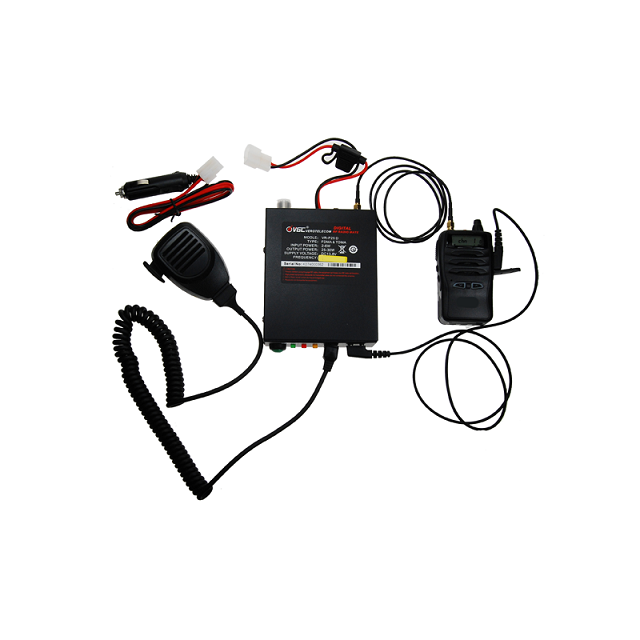

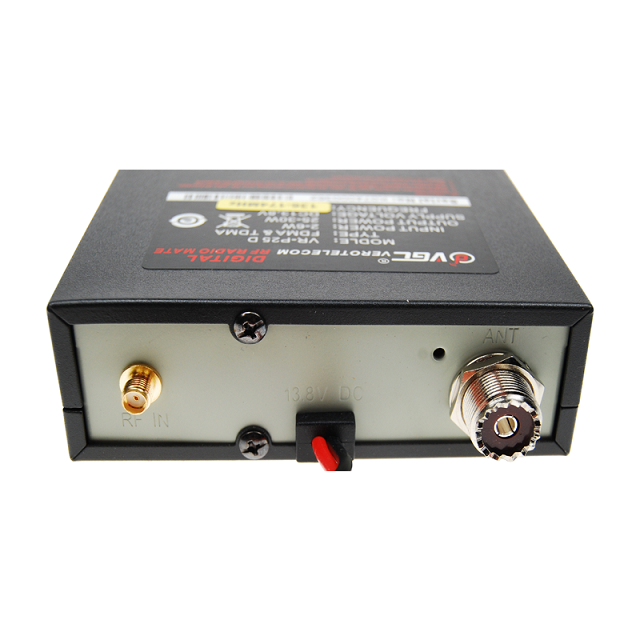

You connect your walkie-talkie to the SMA antenna input of the Vero P 25 D and a UHF 9magnet antenna to the PL output of the Vero repeater.
The great thing about this walkie-talkie amplifier is that it comes with its own microphone and with a Kenwood connector, allowing many other brands of walkie-talkies to be amplified as well!
The Vero VR-P25D is designed to work with all analog and digital handheld transmitters. With an input power of 2-6 watts, up to 30 watts of output power can be achieved.
Suitable for TDMA mode in addition to FDMA (C4FM, D-Star, NXDN, IDAS, dPMR, P25, MPT1327, DMR Tier II).
Supports analog and digital walkie-talkies such as:. Baofeng, Radioddity, Kenwood, Yaesu, Motorola DMR radios.
Can be used in 3 ways: radio controlled, accessory controlled or amplifier controlled.
Features Vero VR-P25D UHF digital / analog amplifier:
Can be used with all walkie-talkies using the standard Kenwood 2-pin connector
Automatic switching between analog and digital modes
Strong built-in speaker and microphone
Clean output signal. With harmonic filters on the input, the amplifier can send a cleaner signal
Compact design, it is particularly suitable for outdoor use, such as with a field radio, in the car or with a base station.
Protected against overheating
RF detection
Automatic shutdown
Voltage stabilizer

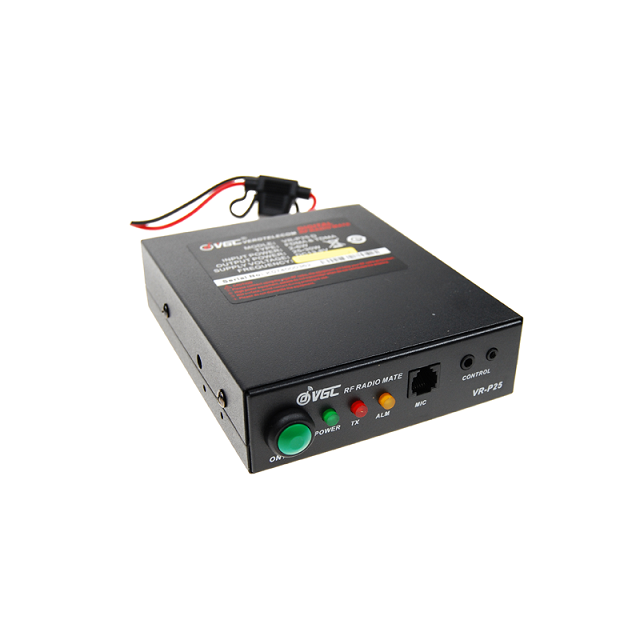

Status display about the current operating state
CE (RED) certificate
Certifications: All FCC amplifiers are CE, FCC certified.
FCC-ID: ZVM-VR-P25U / CE-ID: MOST18EE040578
The Vero VR-P25D is compatible with.
BaoFeng
Kenwood
Yaesu
ICOM
Motorola Handheld
Specifications Vero VR-P25D UHF handheld amplifier:
Frequency range: 400 to 470MHz
RF input power: 2 to 6Watt
RF output power: up to 30Watt
UHF (PL) antenna connector
Power supply: 13.8 VDC (+/- 15%)
Current consumption: max. 5.5 Amps
Dimensions L 135 x H 115 x W 36 mm
Weight: 680gram
Package Contents:
1x Vero VR-P25D UHF handheld amplifier

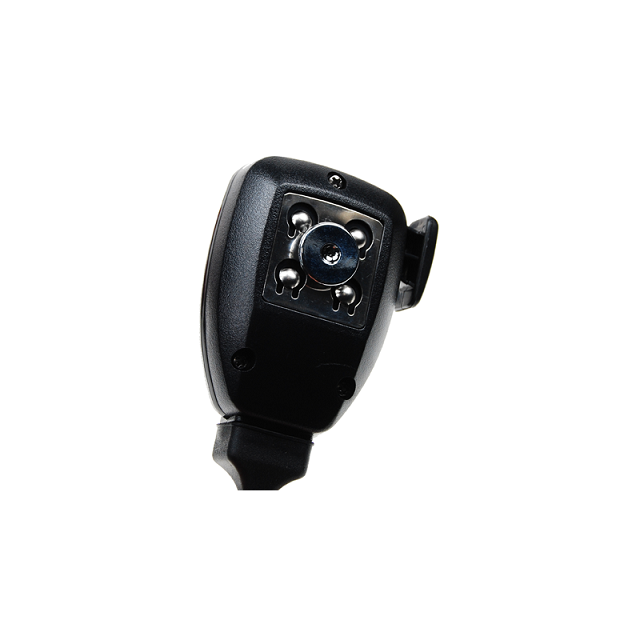

1x Microphone + microphone holder
1x Remote control cable, standard Kenwood 2-pin (K1)

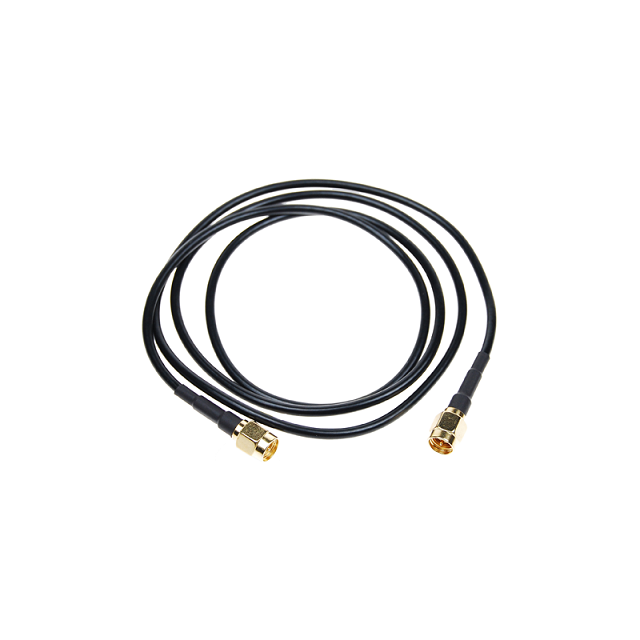

1x SMA-Male - SMA-Male antenna cable
1x SMA-Female - SMA-Female adapter

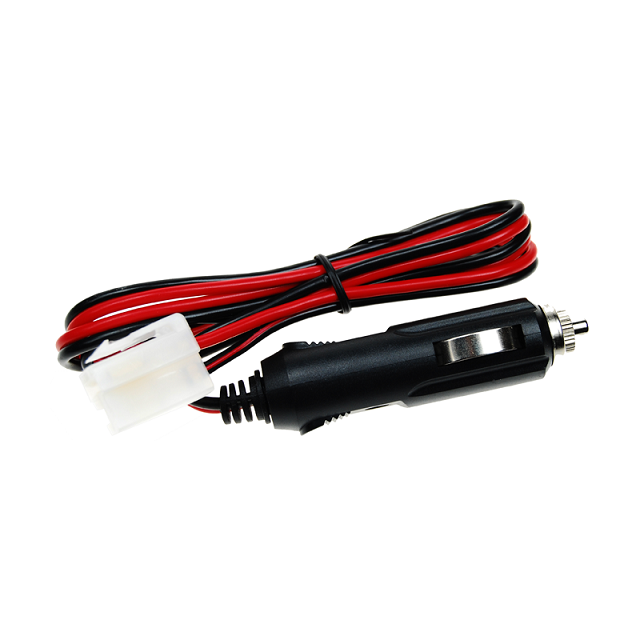

1x Power cord + cigarette lighter plug

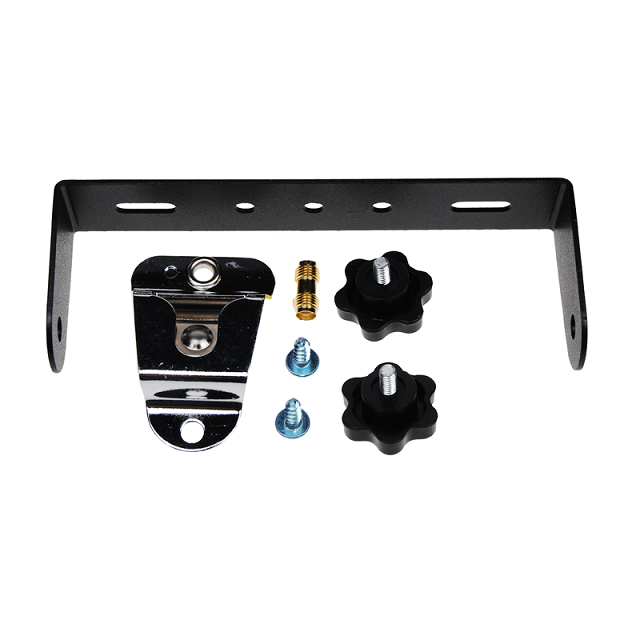

1x Mounting bracket + screws
1x English user manual
