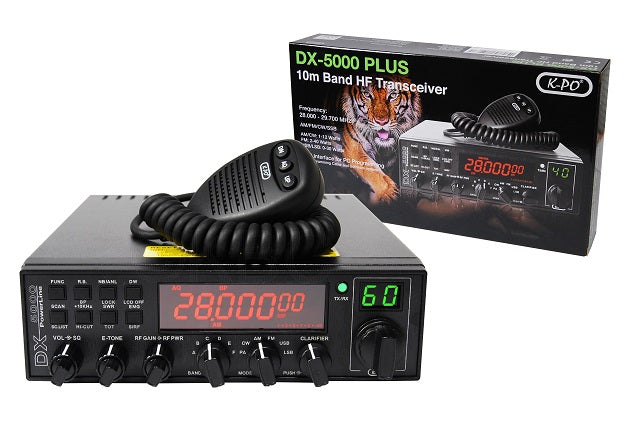

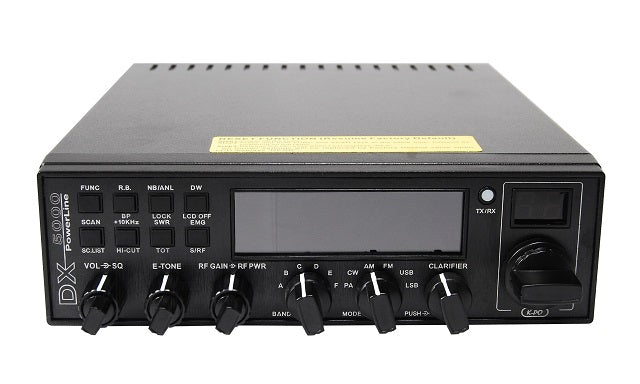

K-PO DX-5000 plus all mode transceiver
K-PO DX-5000 Version plus EXPORT all mode transceiver
New succesor since october 2022 with 5 khz step
The K-PO DX 5000 has not been available for a while. The same possibilities and a different display is the CRT SS6900
This transceiver is 240 CHANNELS, 10, and 11 meters band.
With optional software, it can be programmed from 25,615 - 30,105 MHz.
Furthermore, many settings can be changed or added to the programming set. (See programming sets)
CBShop sells the latest version!
The new 5000 version 6 CB radio can be opened manually to all tires.
Turn on with the F and s / rf buttons pressed.
Then choose 2 bands in the display via the channels button.
Then long-press the F button.
The K-PO DX 5500 then resets.
Turn it off and on again, and it is open from 25,615-28,305.
28-30 MHz frequency range (expandable by software 25.615-30.105 MHz for export purposes)
AM / FM / LSB / USB / CW / PA modes
Transmit power AM 12 watts / FM 40 watts / CW: 12 watts
SSB: 40 Watt
Frequency steps 10 Hz / 100 Hz / 1 kHz / 10 kHz
Features:
- RF control
- Noise blanker and ANL function
- Programmable controller Clarifier
- S-Meter
- Roger Beep
- Output power is adjustable (for AM / FM)
- Scan function
- Echo function can be activated
- Dual Watch (Dual Watch)
- Built-in SWR meter
- Display of the operating voltage of the display
- SWR protection circuit in poor
- Protection against excessive input voltage
- 10 kHz Switch
- Reset function
- Time-Out Timer
- Hi-cut function
- Emergency Call
- Switchable keypad lock
- Programmable via a PC (software & cable not included, optional on this page)
- 3.5 mm jack for external speaker
- CW sidetone 300Hz - 3 adjustable kHz in 10 Hz steps
- Socket for PA (Paging Speaker)
- PL-antenna connection socket
- Power supply 13.8V DC
Dimensions in mm 280 x 250 x 60
Weight 2 kg
IN PACKAGE
K-PO DX-5000
Microphone
Mobile mounting bracket with screws
DC Cable
Manual EN
