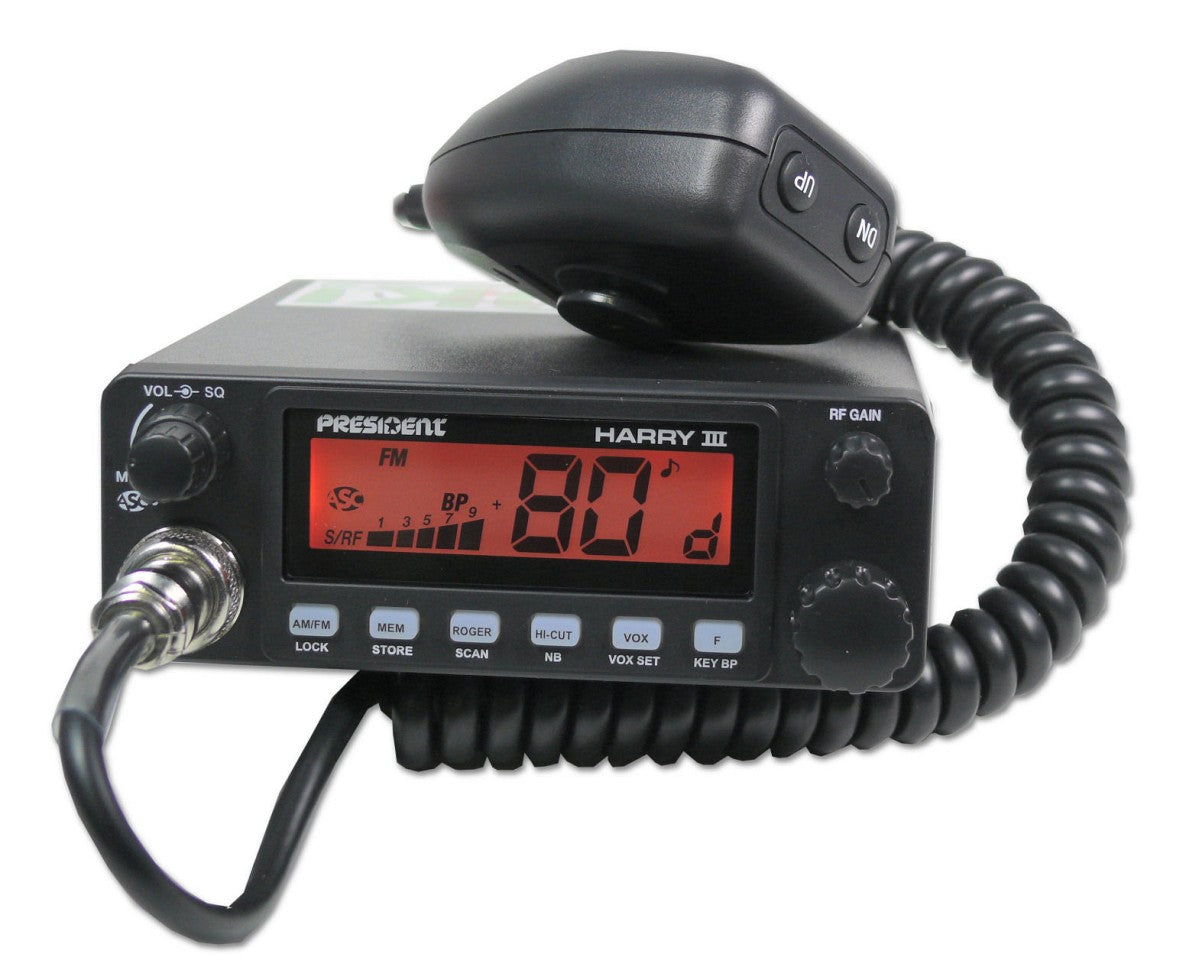

president Harry-3 ASC

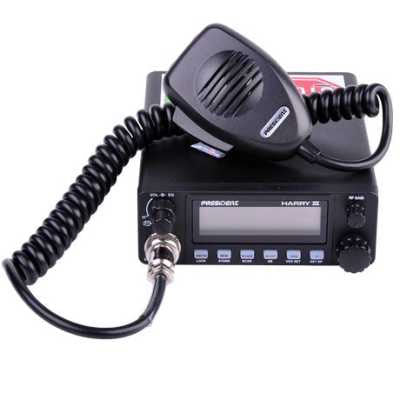

president Harry-3 ASC
Transceiver CB Mobile, Multi 7 European Standards, ASC, Electret Condenser 6-Pin Microphone.
Long description: 6 European Standards
Configuration EU 40CH AM 1W / FM 4W
Configuration E 40CH AM 4W / FM 4W
Configuration D 40CH AM 1W / FM 4W 80CH
Configuration EC 40CH FM 4W
Configuration U 40CH FM 4W CEPT and UK frequencies
Configuration PL 40CH AM 4W / FM 4W, -5KHz Polish frequencies
Packing includes: Transceiver, microphone, mounting bracket with mounting screws, power cord T3, user manual.
CONTROLS FUNCTIONS:
- 40 AM/FM channels
- 6 European standards
- Volume with power ON/OFF control
- Manual and automatic squelch (ASC)
- Multi-functions LCD display
- RF Gain
- Channel selector
- Key Beep function
- Vox function (hands free)
- Hi-cut / NB filters switch
- ANL filter built-in
- Roger Beep
- Channel Scan
- Priority memory channel
- AM/FM mode switch
- Lock function
- Front microphone plug
- Up/Down microphone
- Jack for external speaker
- Jack for external Vox mike
DIMENSIONS:
- Width 125 mm
- Height 45 mm
- Depth 150 mm Dimensions without antenna plug and/or heatsink
OPTIONAL:
- Mini mike handfree
WIRING OF MIC CABLE:
Pin 1 = Modulation
Pin 2 = RX
Pin 3 = TX
Pin 4 = -
Pin 5 = Ground
Pin 6 = Power
Supply Replacement Microphone is President Type DNC-520 U/D, President p/n ACFD520 that is compatible with Johnny-2 ASC, Harry-2 or 3 Classic, Harry-2 or 3 ASC, Taylor-2 Classic, Taylor-2 ASC, Johnson-2, Walker.
HANDFREE MICROPHONE FOR VOX OPERATION OF HARRY-3 ASC: GoTo Avera p/n PRES ACDC200 Product Explorer, Category Accessories, Sub Category Microphones.
