President Walker II Export
President Walker II Export
Since februari 2019 the new President Walker II is available.
After the President Richard stopped production in 2025, this is the same but for the European market.
Just available as a 4 watt model.
Now the Richard had no less than 40 watts and this President Walker 2 in export version 20 watts.
That does not mean that this Walker 2 has half the range!!! That is not how it works.
Where many people went wrong with the 40 watt power of the Richard, because most antennas simply cannot handle this.
With the 20 watts of the WALKER !! you run less risk of output stages coming out. And you really do not get much less.

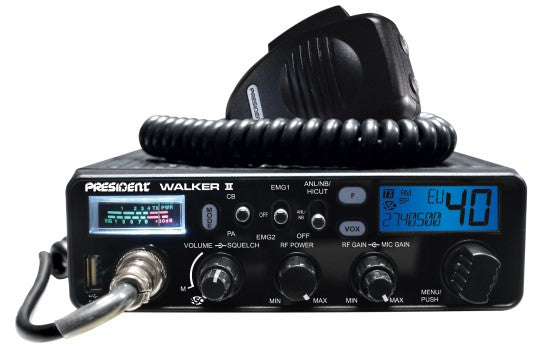

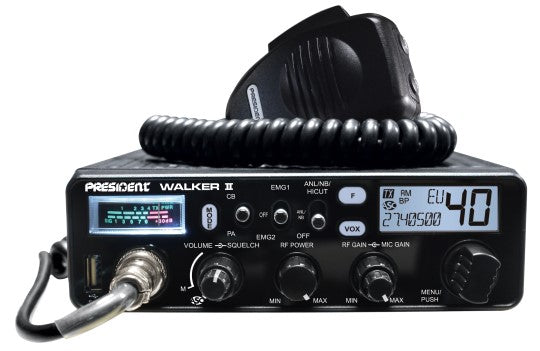

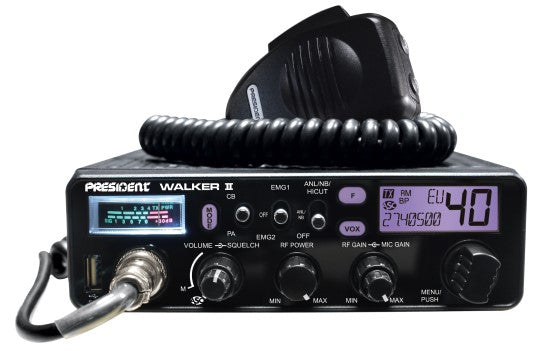

You can choose from 7 colors in your display. And the Walker 2 does have a USB charge plug on the front.
Further it has VOX, RF gain, Mike gain and RF power adjustable.
With 400 channels on AM 8 watt and FM 20 watt you can use this radio with more power than usual
FEATURES, FUNCTIONS AND SPECIFICATIONS:
• 400 channels AM / FM
• Channel rotary switch
• Volume adjustment and ON/OFF
• Manual squelch and ASC
• Multi-functions LCD display
• Frequencies display
• S/RF vu-meter
• Public Address
• Scan
• Talkback
• Beep Function
• Roger Beep
• Tone
• ANL filter, NB, HI-CUT
• RF Gain / Mike gain
• RF Power
• Mic type electret / dynamic
• F function key
• VOX
• Mode switch AM / FM
• Preset emergency (EMG 1/2)
• SWR (Power Reading /SWR)
• Front microphone plug
• External loudspeaker jack
• USB 5V 2.1A
General
• Number of channels: 400
• Modulation modes: AM / FM
• Frequency ranges: from 25.615 MHz - 30.105 MHz
• Antenna impedance: 50 Ohms
• Power supply: 12 V
• Size: 170 (L) x 160 (H) x 52 (D) mm
• DIN Size: Yes
• Weight: 1,1 kg
• Accessories supplied:
…power cord with fuse
…1 microphone UP/DOWN and its hanger
…1 mounting bracket with fixing screws
Transmission
• Frequency allowance: +/- 200 Hz
• Carrier power: 8 W AM / 20 W FM
• Transmission interference: inferior to 4 nW (- 54 dBm)
• Audio response: 300 Hz to 3 KHz in AM/FM
• Emitted power in the adj. channe : inferior to 20 μW
• Microphone sensitivity: 3.0 mV
• Drain: < 2 A (with modulation)
• Modulated signal distortion: 1,8 %
Reception
• Maxi. sensitivity at 20 dB sinad:
…0.5 µV - 113 dBm (AM)
…0.35 µV - 116 dBm (FM)
• Frequency response: 300 Hz to 3 kHz in AM/FM
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 W
• Squelch sensitivity:
…Minimum 0.2 μV - 120 dBm
…Maximum 1 mV - 47 dBm
• Frequency image rejection rate: 60 dB
• Intermediate frequency rej. rate: 70 dB
• Drain: 180 ~ 500 mA maximum
