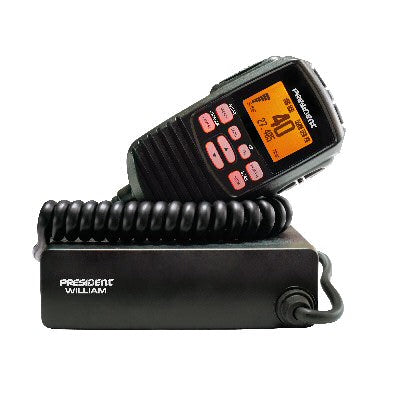

President William ASC
President William ASC
MULTI (5) EUROPEAN STANDARDS:
Configuration EU 40CH AM 4W / FM 4W
Configuration D 40CH AM 4W / FM 4W 80CH
Configuration EC 40CH FM 4W
Configuration U 40CH FM 4W CEPT and UK frequencies
Configuration PL 40CH AM 4W / FM 4W, -5KHz Polish Frequencies
GENERAL:
* Channels: 40
* Modulation modes: AM/FM
* Frequency ranges: From 26.965 MHz to 27.405 MHz
* CTCSS: 38 Tones
* DCS: 104 Codes
* Antenna impedance: 50 Ohms
* Power supply: 13.2V
* Dimensions(in mm): 125(W) x 103(D) x 38(H)
* Weight: ~0.7 Kg
* Accessories supplied: Microphone UP/DOWN with support, mounting cradle, screws
TRANSMISSION:
* Frequency allowance: +/-200Hz
* Carrier power: 4 Watt AM/4 Watt FM
* Transmission interference: Inferior to 4 nW(-54 dBm)
* Audio respons: 300Hz to 3 Khz
* Emitted power in the adjacent channel: Inferior to 20 uW
* Microphone sensitivity: 7 mV
* Drain: 1,8 A (with modulation)
* Modulated signal dist.:2%
RECEPTION
* Maxi. sensitivity at 20 dB sinad:
... 0.5 uV-113 dBm (AM)
... 0.35 uV- 116 dBm (FM)
* Frequency response: 300 Hz to 3 kHz
* Adjacent channel selectivity: 60 dB
* Maximum audio power: 2 W
* Squelch sensitivity:
... Minimum 0.2 uV-120 dBm
... Maximum 1 mV - 47 dBm
* Frequency image rejection rate: 60 dB
* Inter modulation rejection: 70 dB
* Drain:
... 300 mA nominal
... 750 mA maximum
PACKING INCLUDES:
1 Pc Transceiver + Microphone
1 Pc power cord with fuse
1 Pc microphone and its hanger
1 Pc mounting bracket with fixing screws
MICROPHONE:
Electret Condenser Microphone with Connector RJ45.
WIRING OF MIC CABLE:
1 Shield
2 Yellow
3. NC
4. NC
5. NC
6. Black
7. NC
8. Red
