RFL CR577
RFL CR577
GENERAL:
To get the best sounding audio out of your radio start at the source - your microphone!!

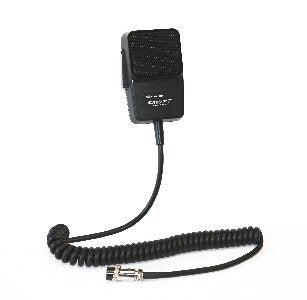

The RF Limited CR577 Ceramic Cartridge Power Microphone is the new definition of quality transmitted audio.
The CR577 features a ultra-clear ceramic microphone cartridge, low noise audio amplifier with volume control and a variable tone control to dial in your audio.
Get heard, and more important be understood!
FEATURES, FUNCTIONS AND SPECIFICATIONS:
* Microphone Type: 1(2.54cm) Ceramic Cartridge
* Microphone Sensitivity: -60dB
* Frequency Response: 30 - 15,000Hz
* Volume (Amp Gain) Control
* Audio Tone Control
* Pre-Wired for 4-Pin Radios using Uniden wiring
WIRING OF MIC CABLE:
Black Wire = PTT Ground
Shield Wire = Ground Audio
Red Wire = Audio Output
White Wire = PTT TX
Blue Wire = PTT RX
LINK(S) TO VIDEO OF THIS PRODUCT:
http://www.youtube.com/watch?v=7DEiUX7l150
Video Test made by David Ogg from United Kingdom.
