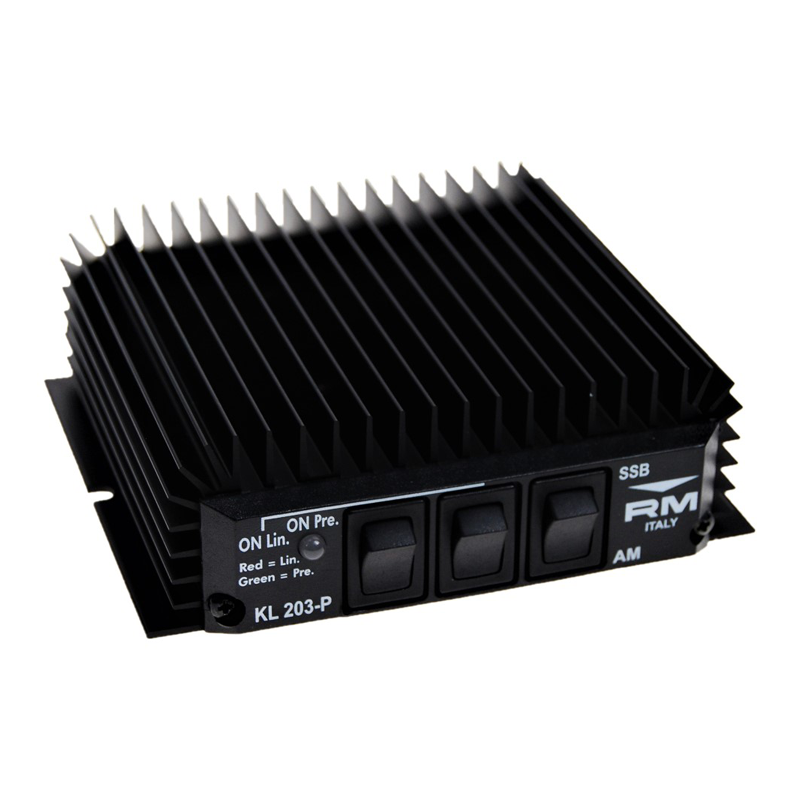

RM KL 203 P
RM KL 203 P
With the RM KL 203 P you have a relatively inexpensive 100 watt amplifier with 26 dB pre-amplifier.
The pre-amplifier helps the incoming signal. What you have to realize is that incoming interference is also amplified.
Mobile 12 -14 volt 100 watt AM FM and 200 watt SSB / CW amplifier, with receive amplifier.
Works from 20 - 30 mHZ and adjustable from 0.5 - 10 watts AM FM and 1 - 20 watts SSB.
Specifications of the RM KL-203P
Electronic switch
Antenna preamplifier 26dB
Inversion polarity protection
Frequency: 20 - 30 MHz (Europe)
Supply: 12-14 VDC
Input power: AM/FM 0,5 - 10 Watt
Input power: SSB 1 - 20 Watt
Output power: AM/FM 100 Watt maximum
Output power: SSB 200 Watt PEP maximum
Mode: AM-FM-SSB-CW
Fuse: 12 A
Output power level: 1
Size: 109 x 125 x 35 mm
Weight: 325 gr.
Amplifier Mobile, 12-14 VDC, 20-30 MHz, AM/FM/SSB/CW, Electronic Switch, Including Pre-Amplifier.
- Input: 0.5 - 10 Watts AM/FM; 1 - 20 Watts SSB/CW.
- Output: 100 Watts Max AM/FM; 200 Watts Max SSB/CW.
Specs RM KL-203P
Electronic switch
Antenna preamplifier 26dB
Inversion polarity protection
Frequency: 20 - 30 MHz (Europe)
Supply: 12-14 VDC
Input power: AM/FM 0,5 - 10 Watt
Input power: SSB 1 - 20 Watt
Output power: AM/FM 100 Watt maximum
Output power: SSB 200 Watt PEP maximum
Mode: AM-FM-SSB-CW
Fuse: 12 A
Output power level: 1
Size: 109 x 125 x 35 mm
Weight: 325 gr.
