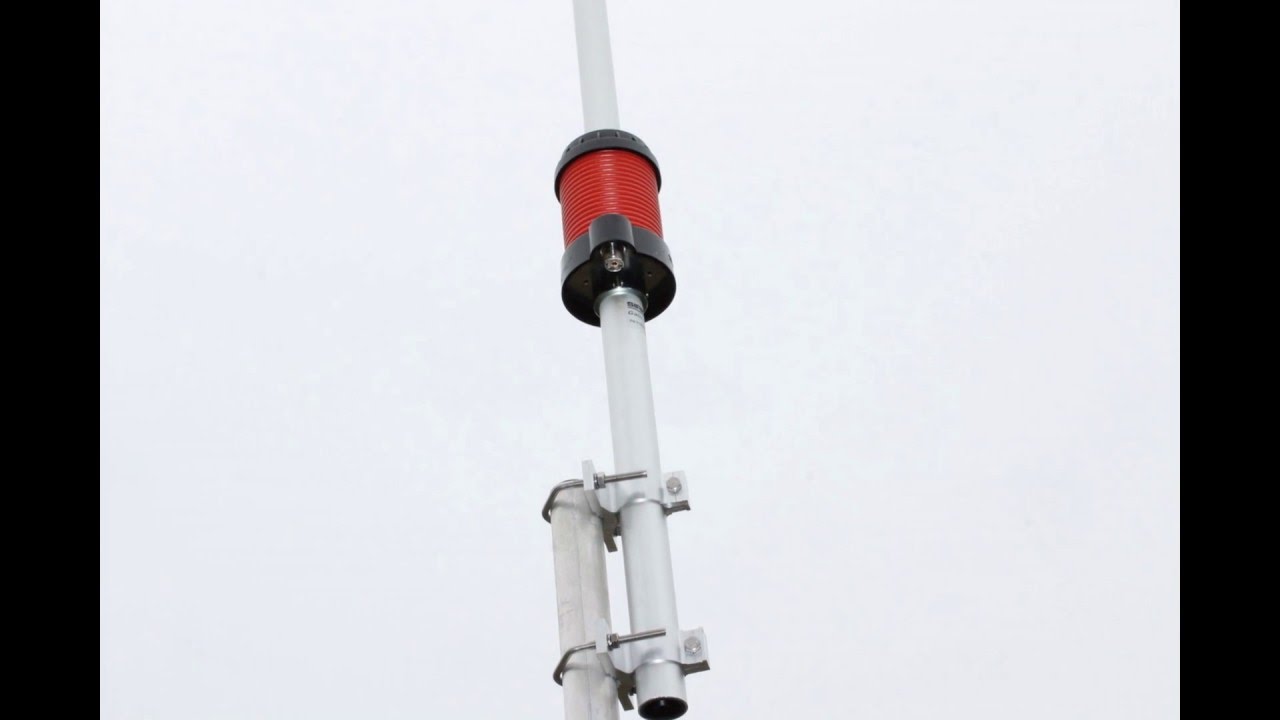

Sirio Gain-Master – Fiberglass CB Base Station Antenna 7.36 m

The Sirio Gain-Master is a high-tech fiberglass base antenna for 27 MHz (CB radio) and the 10 meter amateur band — a 0.625 center-fed vertical dipole designed to get the maximum gain obtainable for a base antenna. The patented center-fed dipole puts all RF parts of the antenna in phase, so no side radials are needed.

Technical specifications

• Type: 0.625 center-fed vertical dipole
• Frequency range @ SWR 2.0: 25.5–30 MHz (400 CB channels, 10 m ham band)
• Impedance: 50 ohms
• Radiation: omnidirectional, linear vertical polarization
• Max. power: 500 watt (CW) continuous, 1000 watt short time
• Connector: UHF-female, PTFE insulator with gold-plated central pin
• Height (approx.): 7360 mm with bracket, radiator 6850 mm
• Mounting: 35–54 mm side mast with bolt
• Materials: white fiberglass whip (4 sections), copper radiator, low-loss coax cable, stainless steel hardware, anodized AW6060 aluminium
• Wind resistance: up to 160 km/h

Please note: due to the high shipping costs of its length, we can not ship this antenna outside the Netherlands. If you arrange your own transportation or are willing to pay the extra costs, we may be able to ship it.
