Super Star 3900
Super Star 3900 / export
In 2023 we at CBShop got back an old familiar cbradio in the range. The SuperStar 3900.
What makes the Super Star 3900 unique is that it comes standard in multinorm in the allowed 40 channels and 4 AM FM and 12 watt USB LSB.
Most USB radios we first have to modify to 27 Mc channels.
The Super Star 3900 in export version runs from 26.615 - 30.105 Mhz.
The 2023 3900 radio is of course more modern inside... has a function indicator in the display and has up and down on the microphone.
Disadvantage of this radio for mobile use is that the microphone is on the side.
As a home user with a power supply and basic antenna, this of course matters less.
In export mode the Superstar 3900 has 12 watts AM FM and 40 watts SSB
Features:
CB-27 mobile radio
Channels: 40 Multi-standard
Modes: AM/LSB/USB/FM
Frequencies: 26.565 to 27.99125 MHz
Tx power: 4W (AM/FM) 12W (SSB)

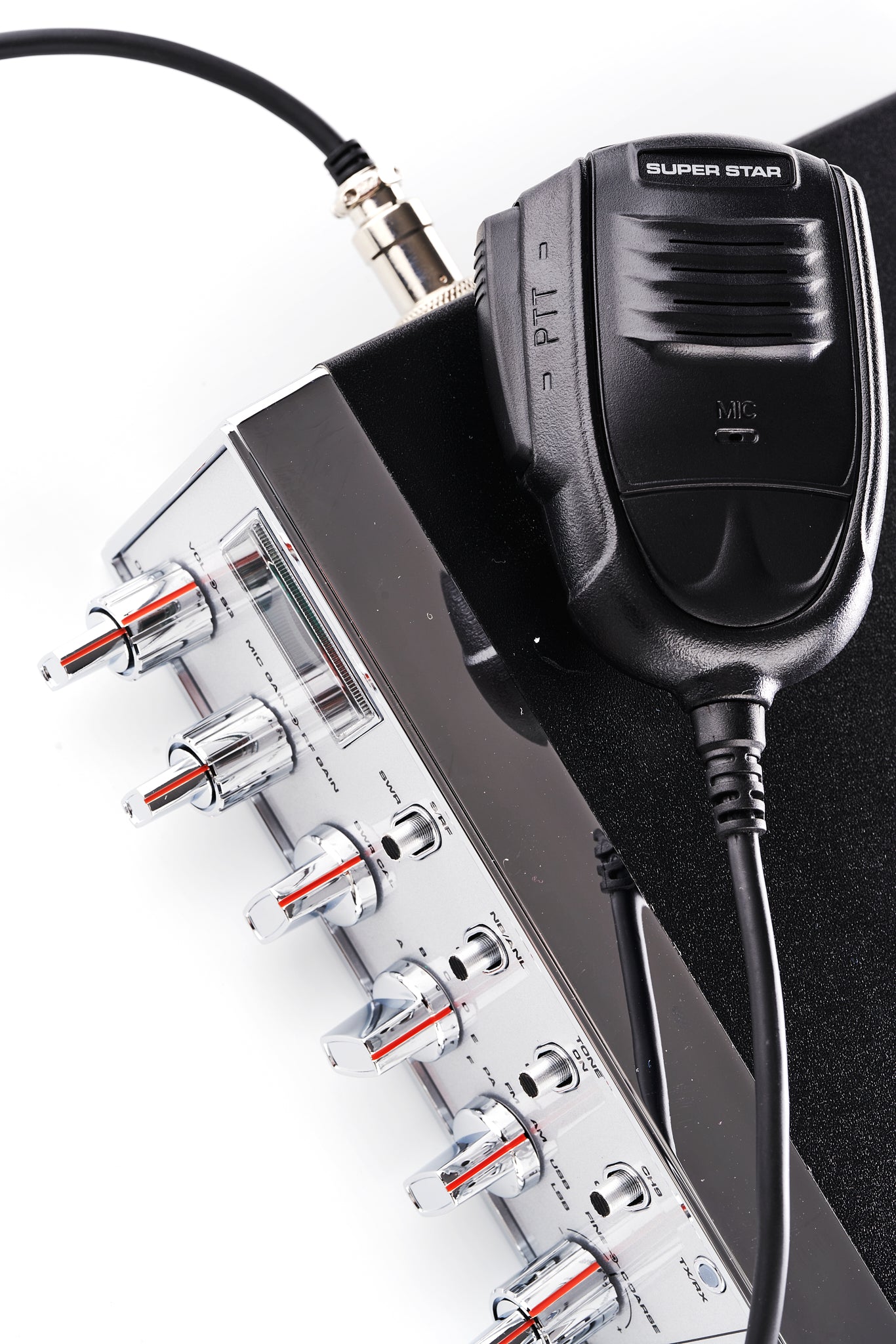

Handheld microphone with channel change buttons (UP/Down)
Backlit display with channel indicator and equipment functions menu
Standing wave meter (SWR) and power
Functions:
SWR, PWR, RX RSSI meter
PC programmable
SQ, ASQ function
RF gain adjustment
Microphone gain adjustment
Programmable roger beep
NB/ANL function
Command notification by beep
TOT function
HI-CUT function
Busy channel lockout
Adjusting the screen illumination
SWR protection
Supply voltage protection
VOX function
Reception noise reduction
Transmission noise reduction
Specifications:
AM/FM/SSB modulator
Frequency Control: PLL Synthesizer
Frequency stability: +/- 5 ppm
Channel spacing 10 KHz
Operating temperature: -20º to +55 ºC
Antenna impedance: 50 Ohms

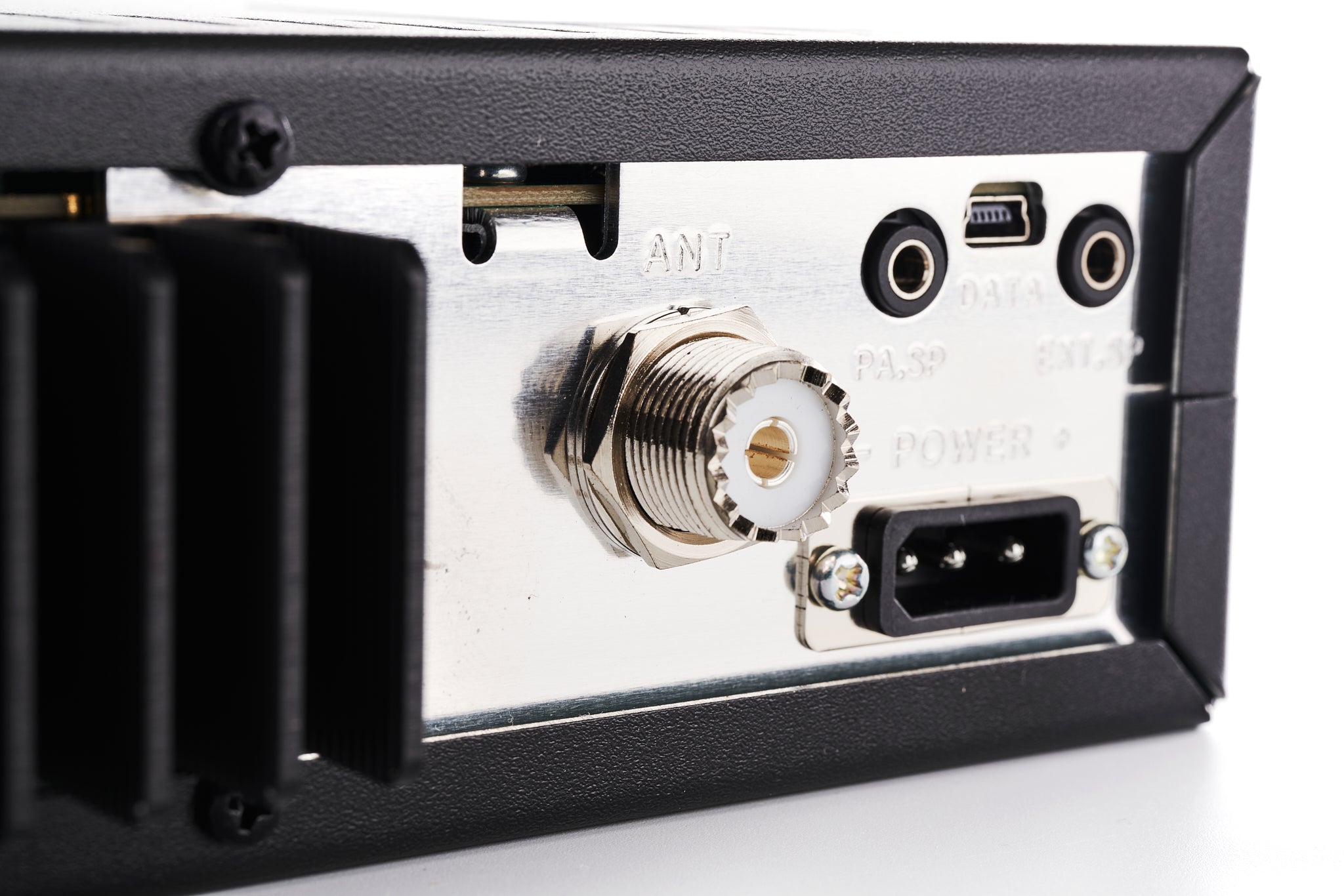

Antenna connector: UHF, SO 239
Supply: 13.8 V DC
Consumption: 5 A
Dimensions: 28.7 cm (L) x 20.0 cm (W) x 6.1 cm (H)
Weight: 1,500 g
In the box:
1 x Super Star 3900CB Transceiver
1 x Handheld Microphone with Up/Down function
1 x Mounting bracket with screws
1 x Power cable with fuse (Spare fuse (10 A, 250 V))
1 x Manual in English
Features
Manufacturer: Superstar
Article number: KIE 3900
Bar code: 8435550803481
Delivery time: 1-3 working days
Bands: AM/LSB/USB/FM
Multi standard: Yes
Number of channels: 40 Channels AM/LSB/USB/FM
Transmit power: 4W (AM/FM) & 12W (SSB)
Impedance: 50 Ohms
Frequency Range: 26.565 to 27.99125 MHz
Vox Function ( Hands free ): Yes
R.F. Gain: Yes
Mic Gain: Yes
Manual Squelch: Yes
Automatic Squelch (ASC): Yes
Roger Beep: Yes
Power Supply Voltage: 13.8 V DC
Display color: Red
Connection: Antenna: SO 239 (UHF-female)
Dimensions L x W x H ( cm ): 28.7 cm (L) x 20.0 cm (W) x 6.1 cm (H)
