Uniden SDS 100 E DMR NXDN dPMR Provoice
Uniden SDS 100 E DMR NXDN dPMR Provoice
If you are looking for the latest technology in the radio scanner world, you need the Uniden SDS 100E.
Basically just a portable computer with which you can buy downloadable extra features so you only pay for what you want.
You can also put the latest waterfall on it via the Australian website. Fill in a fake address in Australia.)
Real enthusiasts already work with SDR, software defined radio technology. In today's communication world, more and more is going digital and the frequency spectrum is increasingly full. So to distinguish even the weakest signals you need better and better equipment.
Our experience with this Uniden SDS 100 is that we have never had better.
Costs a bit, but then you have something. Expensive equipment such as a spectrum analyzer now sits unused in our workshop. A device for which we once paid thousands of euros.
https://youtube.com/shorts/gv5MbE5lLQo?si=-oQXd4xq_oN3iF9h

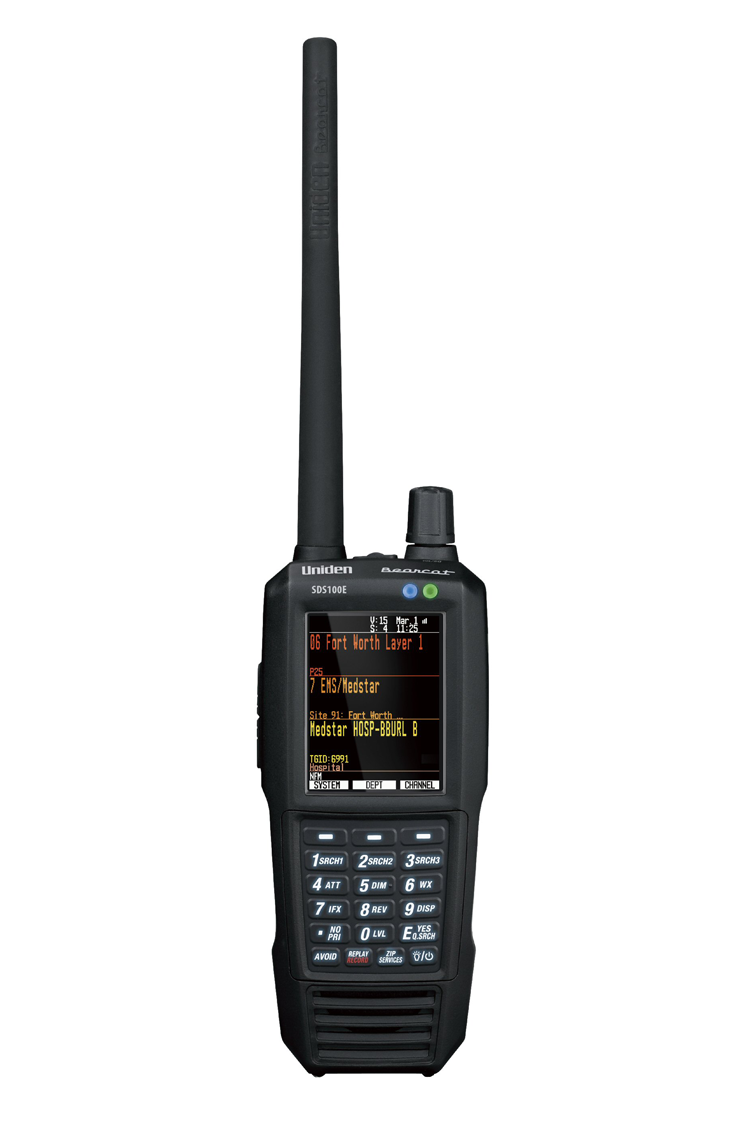

ADJUSTABLE COLOR SCREEN
What is also nice is that you can adjust the screen of the SDS 100E yourself. So that the information is where you find it important. Can't be done with any other radio scanner in the world, in my opinion.
TRUE I/Q SCANNER
Let me put it this way. You do need some IQ to use this scanner to its fullest potential. If the Uniden 69 XLT can be seen as a beginner scanner, the Uniden SDS 100E is the absolute best with more features a regular listener will need. This is why a Dutch manual is now included.
DOWNLOADABLE SOFTWARE AT UNIDEN
This is also new at UNIDEN. CBShop may sell you the device, but earn nothing from updating. It is no different.
We do offer these options as a choice, so that we already do this for you so you don't have to get started with a credit card yourself.
And we see this as a service to you.
ProVoice (is of no use to you in Europe) you will have to buy online that we do not offer.
What do you pay for the extra functions? (prices in December 2018)
DMR (Digital mobile radio) costs 55 euros
NXDN (Kenwood digital radio) 50 euros
ProVoice (used in EDACS trunking systems) costs 50 euros
Location based scanning
Set your location(s) by zip/postal code or GPS coordinates for direct reception (unfortunately only for USA and Canada).
Auto-locate feature determines your location if you don't know where you are. (optional)
Close Call © RF Capture Technology
Checks for Close Call activity between channel reception so that active channels are not interrupted.
Automatically select what to scan based on your current location as provided by an external GPS unit.
Customizable Color Display.
Set the display color for each field in the display.
For many fields, you can select the information provided.
Water resistant (JIS4)
Resistant to dust and damage caused by splashing water from any direction. (When all jacket covers are in place)
GPS compatible
Technical specifications and what the package contents are you at the bottom of this page.
Frequency range:
- 25-512 MHz
- 806-960 MHz
- 1240-1300 MHz
Uniden SDS100Especifications:
- Customizable Color Display
- Trunk tracker X
- APCO P25 Phase I and II
- Motorola, EDACS, and LTR Trunking
- MotoTRBO Capacity + and Connect + (Paid Upgrade required)
- DMR Tier III (Paid Upgrade required)
- Hytera XPT (Paid Upgrade required)
- Single-Channel DMR (Paid Upgrade required)
- NXDN 4800 and 9600 (Paid Upgrade required)
- EDACS ProVoice (Paid Upgrade required)
- Location-Based Scanning
- USA/Canada Radio Database
- ZIP Code Selection for Easy Setup
- Close Call™ RF Capture with Do Not Disturb
- 8 GB microSD
- Soft Keys for Intelligent UI
- Recording, Playback, and Replay
- Temporary Avoid
- Fire Tone-Out Alert
- System Analysis and Discovery
- CTCSS/DCS/NAC/RAN/Color Code Decoding
- S.A.M.E. Weather Alert
- Enhanced Dynamic Memory
- Preemptive Trunking Priority
- Fully Customizable Scanning with your own Favorites Lists
- Backlit Keypad
- Channel Volume Offset
- PC Programming and Control
- USB Connectivity and Charging
- Free Sentinel Software keeps the SDS100E database and memory up to date
- Lithium-Ion Battery
Package Contents:
- 1x Uniden SDS-100E scanner
- 1x AC Adapter EU/UK
- 1x USB cable
- 1x Micro SD card (installed)
- 1x Lithium Ion Battery Pack, BT-955 (3.7 Volt, 5400 mAh, 19.8 Wh)
- 1x SMA-BNC Antenna Adapter
- 1x SMA (Male) Antenna
- 1x Belt Clip
- 1x User Manual (English)
You can have CBShop deliver the scanner already with activated DMR NXDN.
But with a credit card you can also buy dPMR activation code yourself through this website:
https://uniden.com.au/product/scanner-upgrade/
FIRMWARE UPDATES:
Uniden Japan has a website where the latest versions of the Sentinel and FirmWare updates can be found for the models UBCD3600XLTm SDS100E abd SDS200E.
Click for link
Link to Dutch manual
Available accessories:
- Butel ARC-536 Basic (Programming software for windows - Basic version).
- Butel ARC-536 Pro (Programming software for windows - Pro version)
