WOUXUN KG-D26 6 watt export versie
WOUXUN KG-D26 CBShop export version
6 watt High power and 0,5 watt low power!
The new Wouxun KG-D26 dPMR is fully compatible, analog and digital, with the Kenwood TK-3401D, TK-3601D and TK-3701D series.

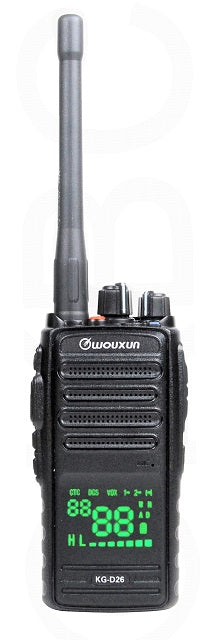

The hidden display is integrated in the strong radio body, which prevent it from damaging. It will clearly show you the:
Channel number
Since november 2024 we added scan function for analogue PMR channesls to it
Analogue / digital mode
Current zone
High / low power
Narrow / wide bandwidth
Battery status
Signal status
VOX indicator
DCS/CTCSS indicator
Time slot 1 / 2 indicator
Main features
Three programmable side keys (by software only)
TX/RX indicator
Emergency button
Programmable emergency channels (by software only)
Scan function (activation by software)
VOX function (activation by software)

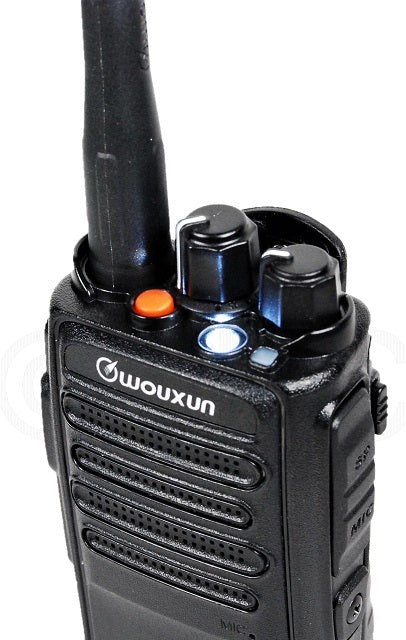

Flashlight
2000 mAh heavy duty battery pack
Kenwood 2-pin accessory connector
Optional 6-way charger available
Specifications
Frequency range: 446.0-446.2 MHz
Power output: 0.5 Watt
Channels: 16 channels per zone
Channel spacing: analogue 12.5 KHz, digital 6.25 KHz
Zone: 99 programmable (3 zones preprogrammed)
RX group list: 32 groups, 8 members per group
Scanning list: 16 groups, 16 channels per group
Operating voltage: 7.5V DC +/- 20%
Battery life: battery save off: 24 hours, battery save on: 30 hours (5% transmit, 5% receive, 90% standby)
Frequency stability: +/- 1.0 ppm
RX sensitivity: 0.25 uV
Microphone modulation: 120 mV
Microphone distortion: 12 mV
Error radio: -118 dBm
Adjacent channel power: > 60 dB at narrow bandwidth
Spurious: > -57 dB
Offset frequency: 100 Hz
Modulation: +3dB–3dB
Audio output: internal speaker 1W/12 Ohm, external output 1W/16 Ohm
Audio: +2dB-10dB
Antenna connector: SMA-male (antenna is fixed)
Antenna impedance: 2.5 dBi
IP 55
Approx. measurements (h x w x d): 125 mm x 53 mm x 33 mm (without antenna and belt clip)
Approx. measurements (h x w x d): 245 mm x 53 mm x 44 mm (with antenna and belt clip)
Weight: 245 gram
When you start working with the Wouxun software yourself, you will no longer get it in export mode.
You also lose the right of return with this. After all, we sold you the export version with 6 watts.
